Overview

The Trailhunter 1000 is a 4x4 ATV with a V-twin, liquid-cooled engine, 999 cc, BOSCH EFI, 100 hp and 93 N·m of torque. Selectable 2WD/4WD with front differential lock, 301 mm of ground clearance and a towing capacity of 820 kg.

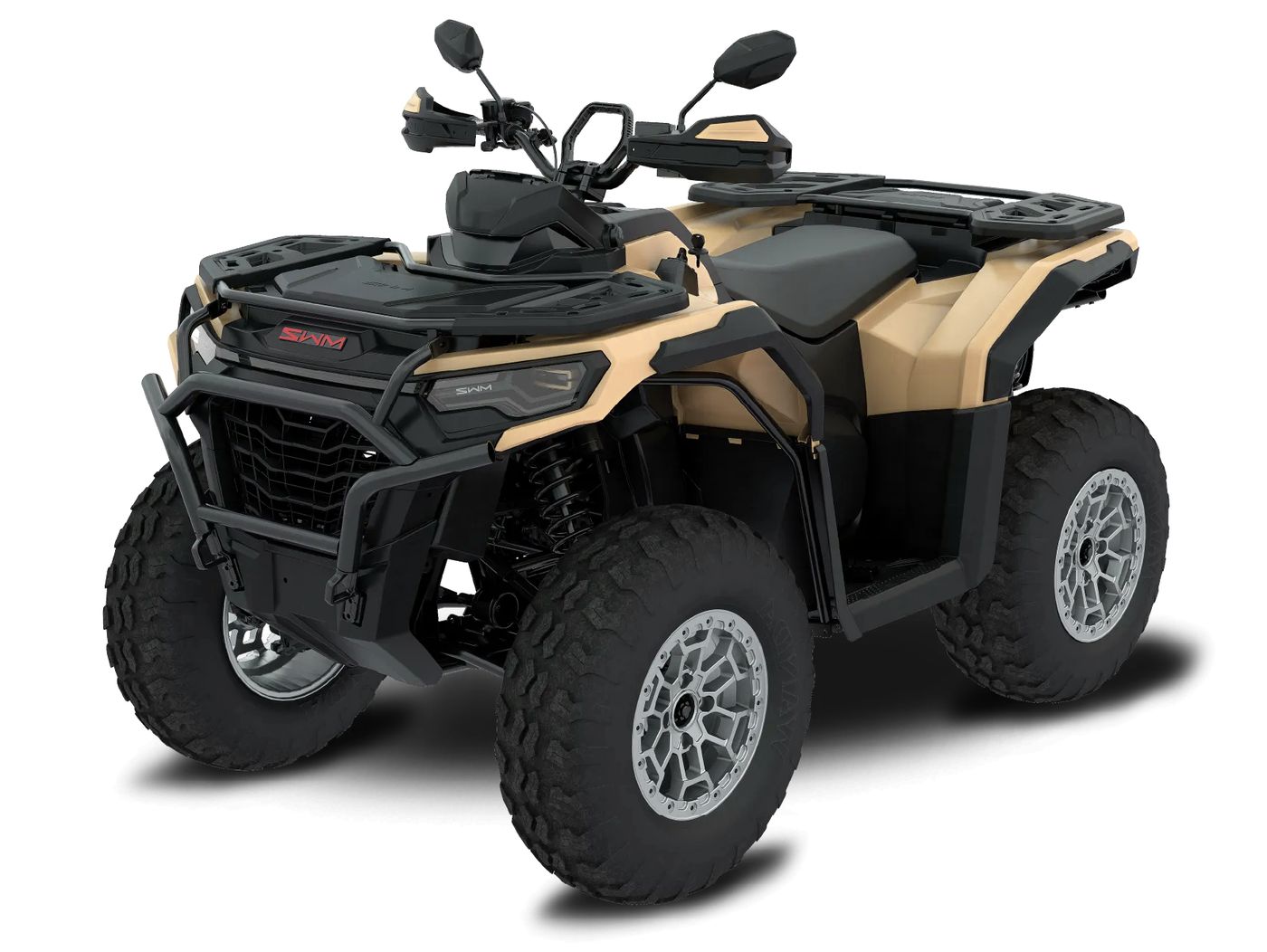

Built to endure

A high-yield-strength alloy steel frame for demanding conditions.

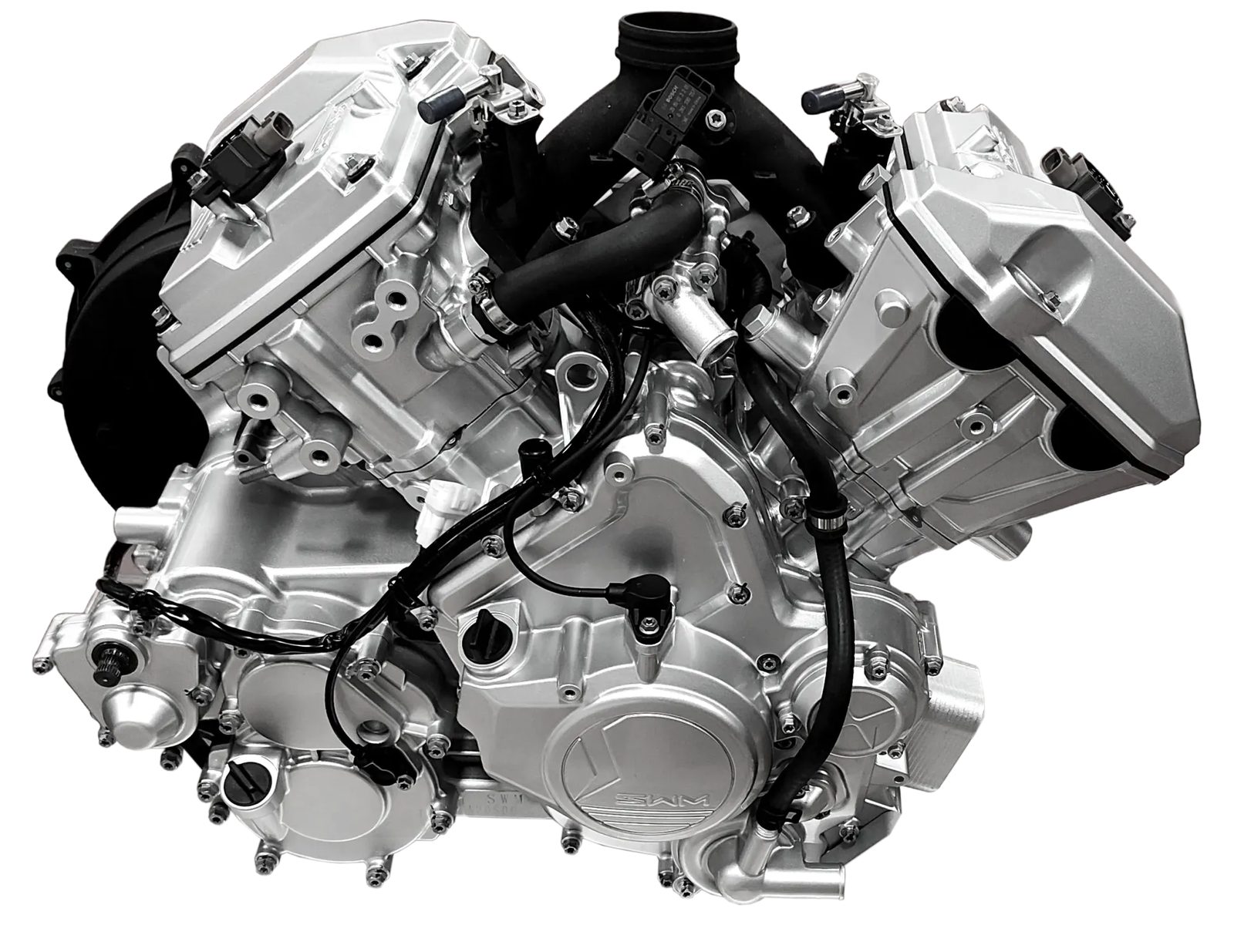

Engine

999 cc V-twin, liquid-cooled engine with BOSCH EFI — 100 hp and 93 N·m of torque.

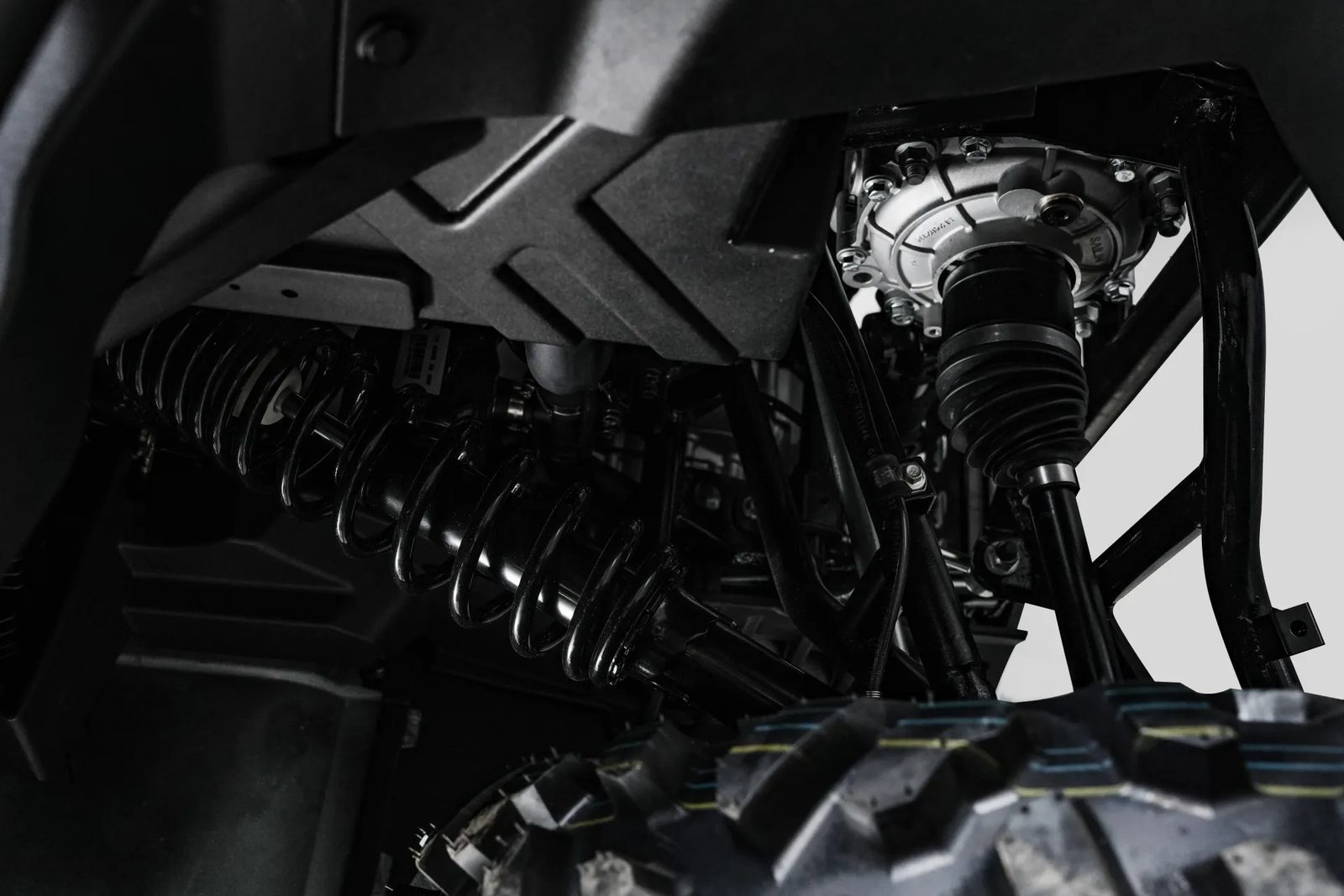

Suspension

Double A-arm suspension with 274 mm of front and 305 mm of rear travel.

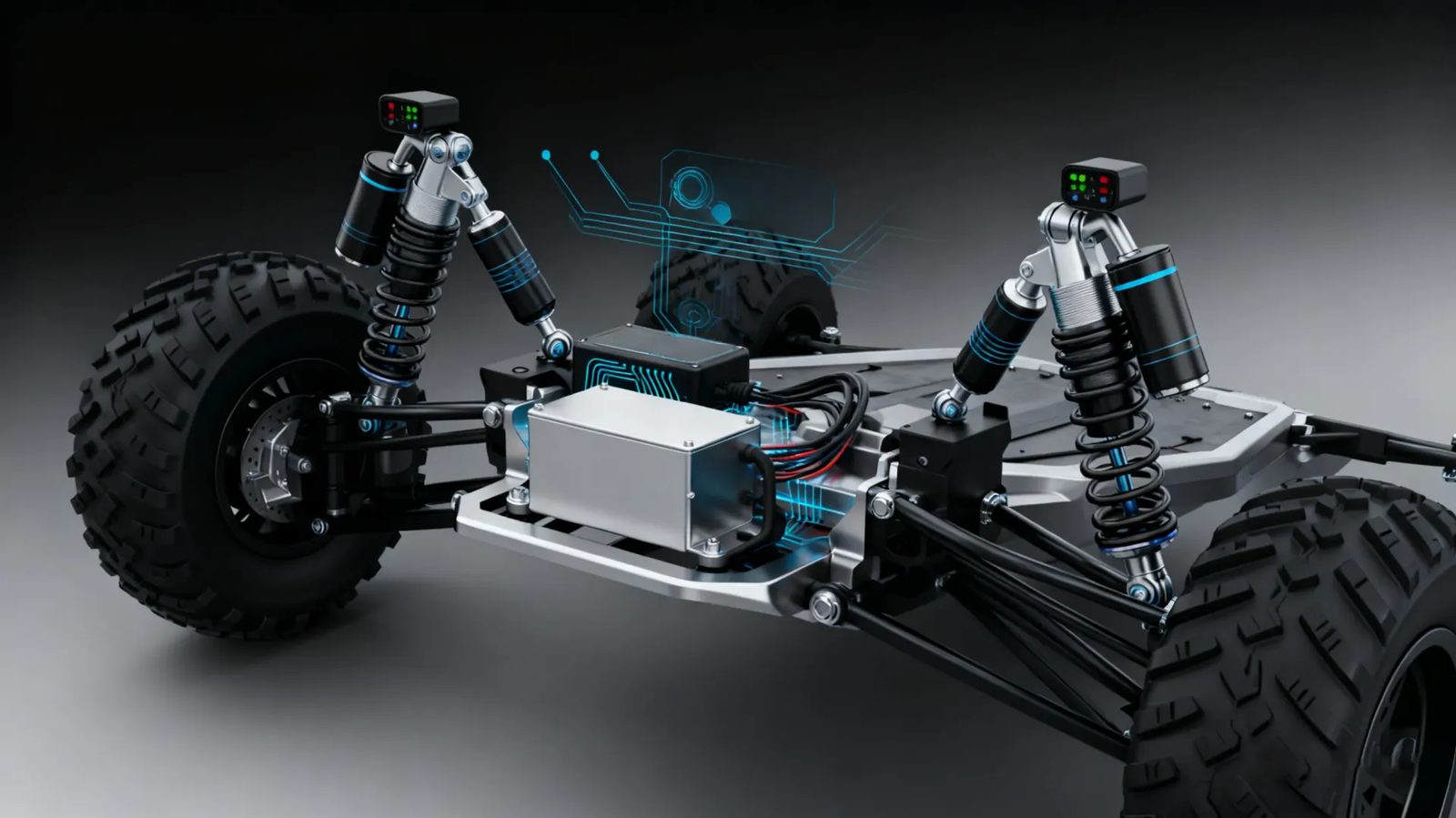

Smart electronic suspension

Smart E-Suspension adjusts the damping to improve pitch control on rough terrain, and adjusts the left and right dampers independently for roll control when cornering.

Storage

Integrated front and rear sunken storage compartments for your gear and essentials.

Smart options

Tri-mode EPS, engine braking, intelligent throttle control, Eco / Standard / Sport work modes, active descent control, anti-theft and electric gear shift.

Versions & equipment

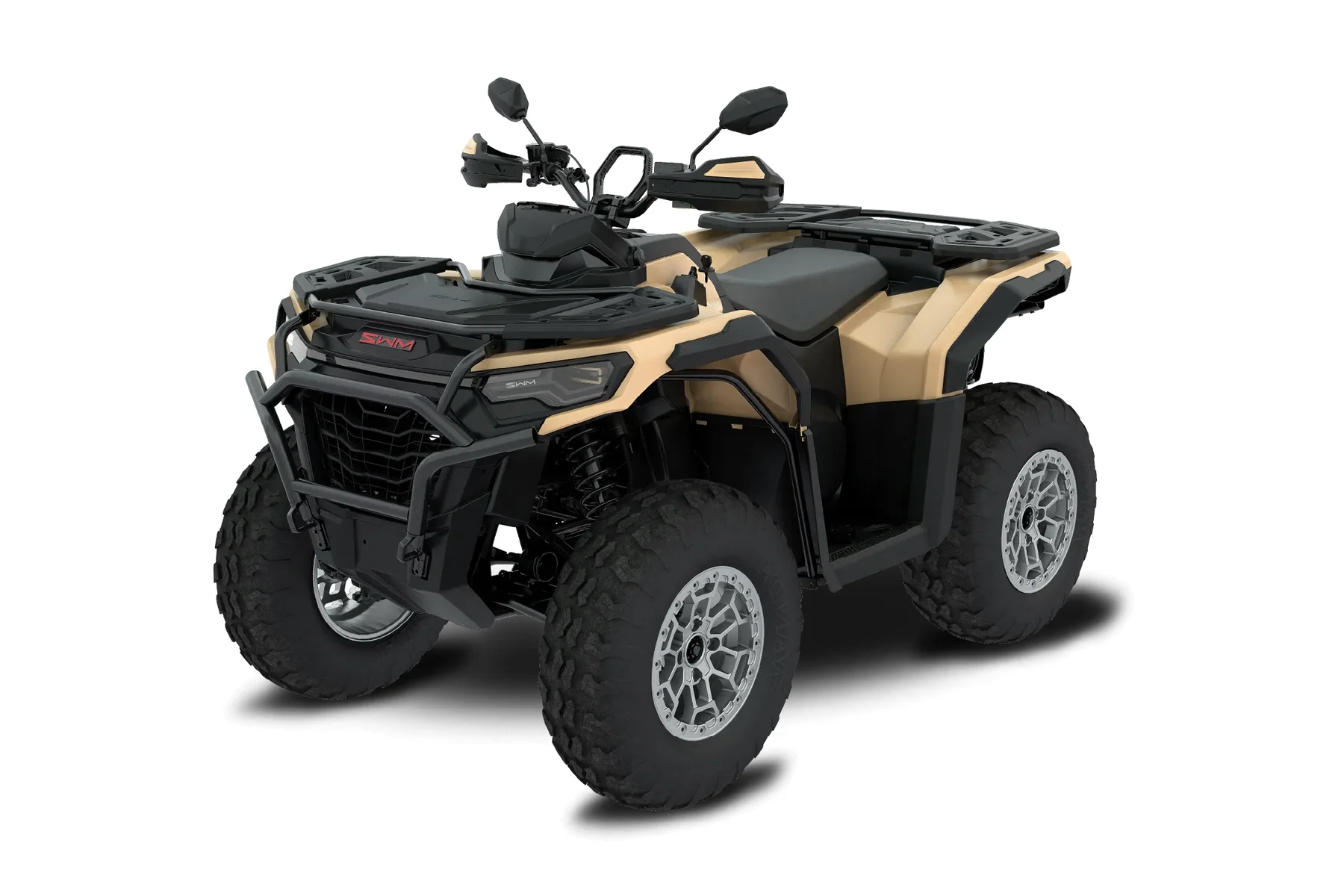

Trailhunter 1000 EPS

Electronic throttle
Eco / Standard / Sport modes
Smart anti-theft key
EPS
26 in. K-rated tires, 14 in. steel wheels

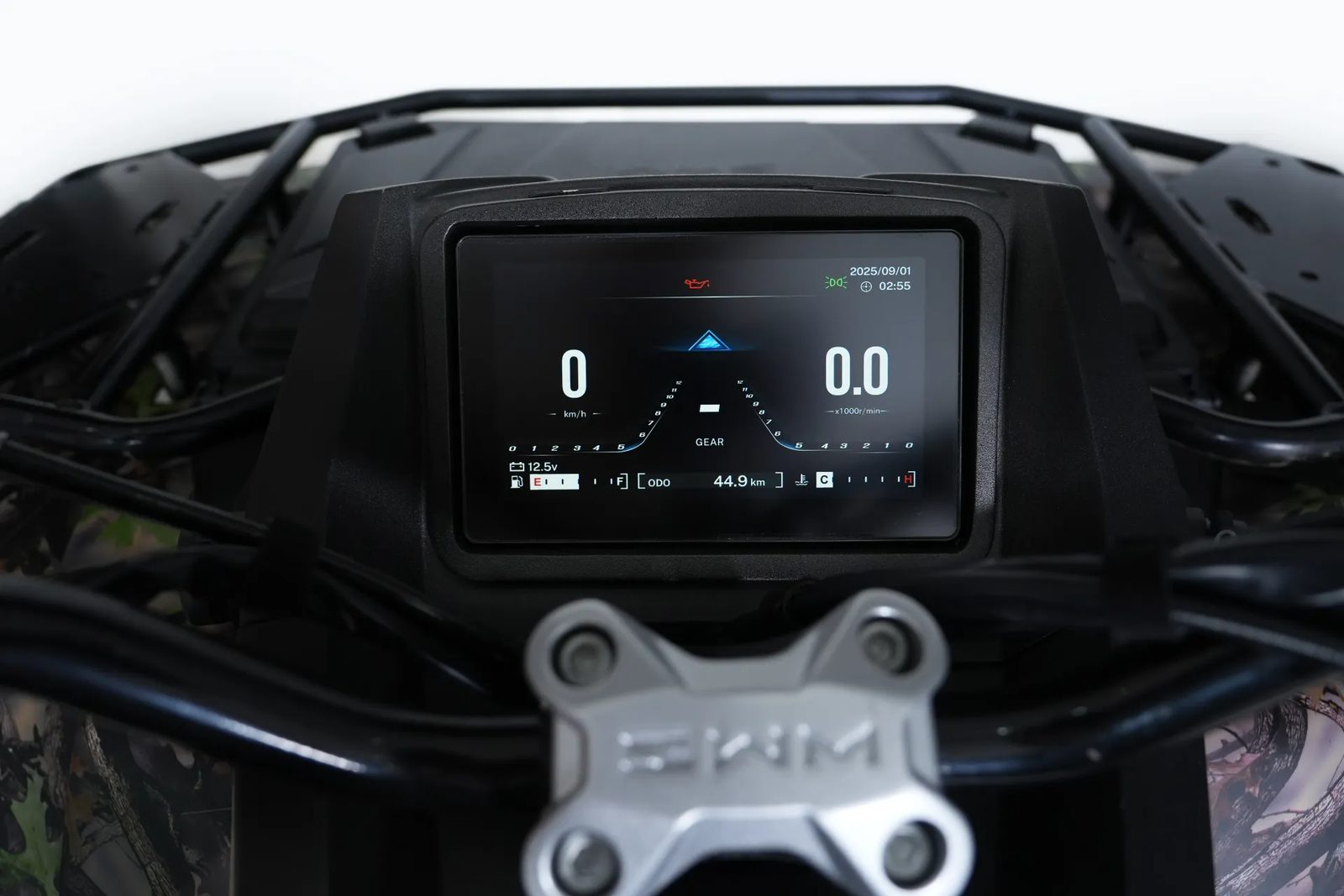

7 in. TFT display
Oil shock absorber
Base-grade front bumper
CVTech Clutch
Fender guards
BCM (Body control module) system
Intelligent In-Vehicle Infotainment System (IVI system)

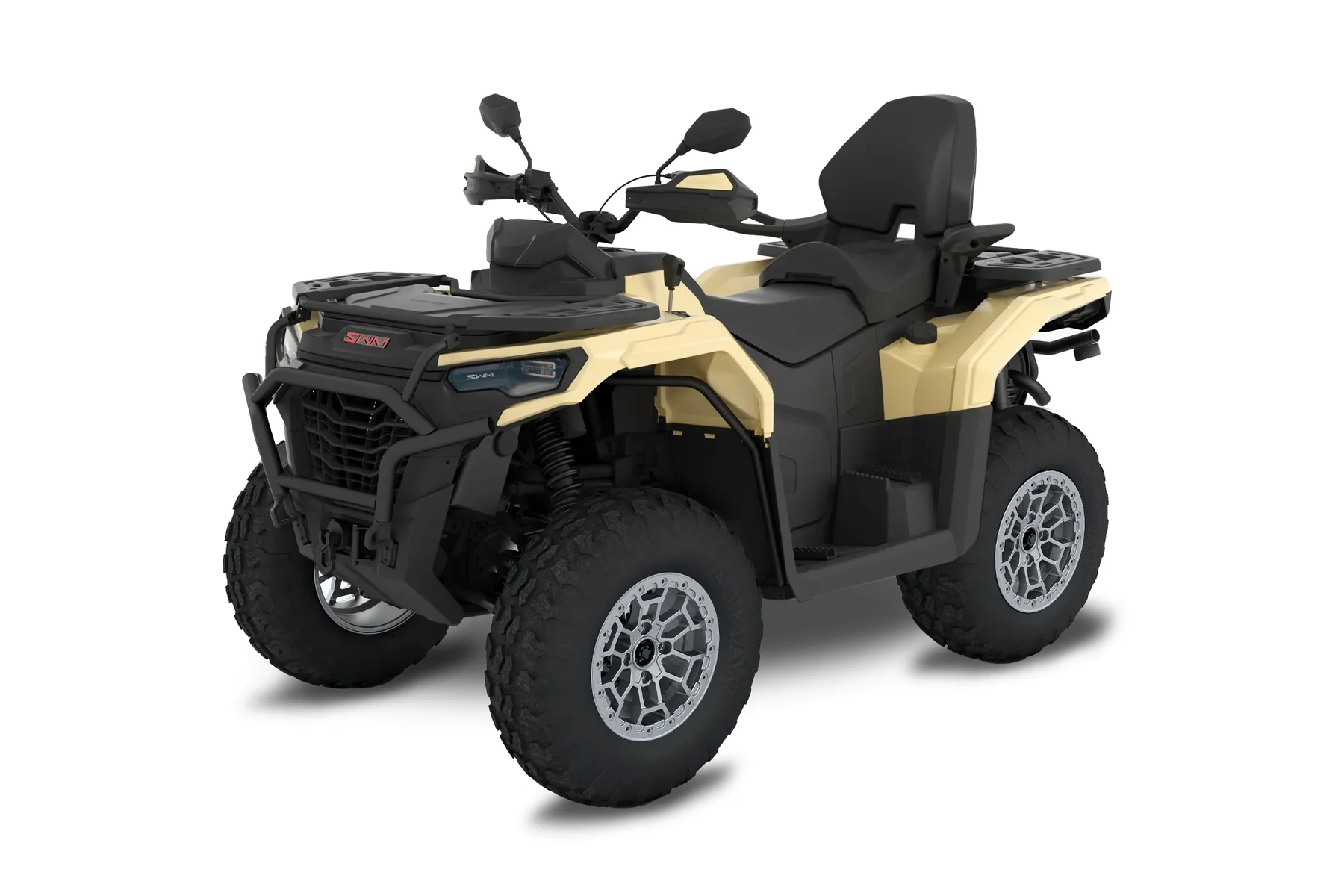

Also available as a 2-seat Touring version.

Trailhunter 1000 Pro

Intelligent Hill Descent Control (IHDC)
27 in. K-rated tires, 14 in. aluminum wheels
3500 (1583 kg) winch
Mid-grade front bumper
Front double A-arm with sway bar
Fender guards
Front and Rear Center-Mounted Daytime Running Lights (DRLs)

Also available as a 2-seat Touring version.

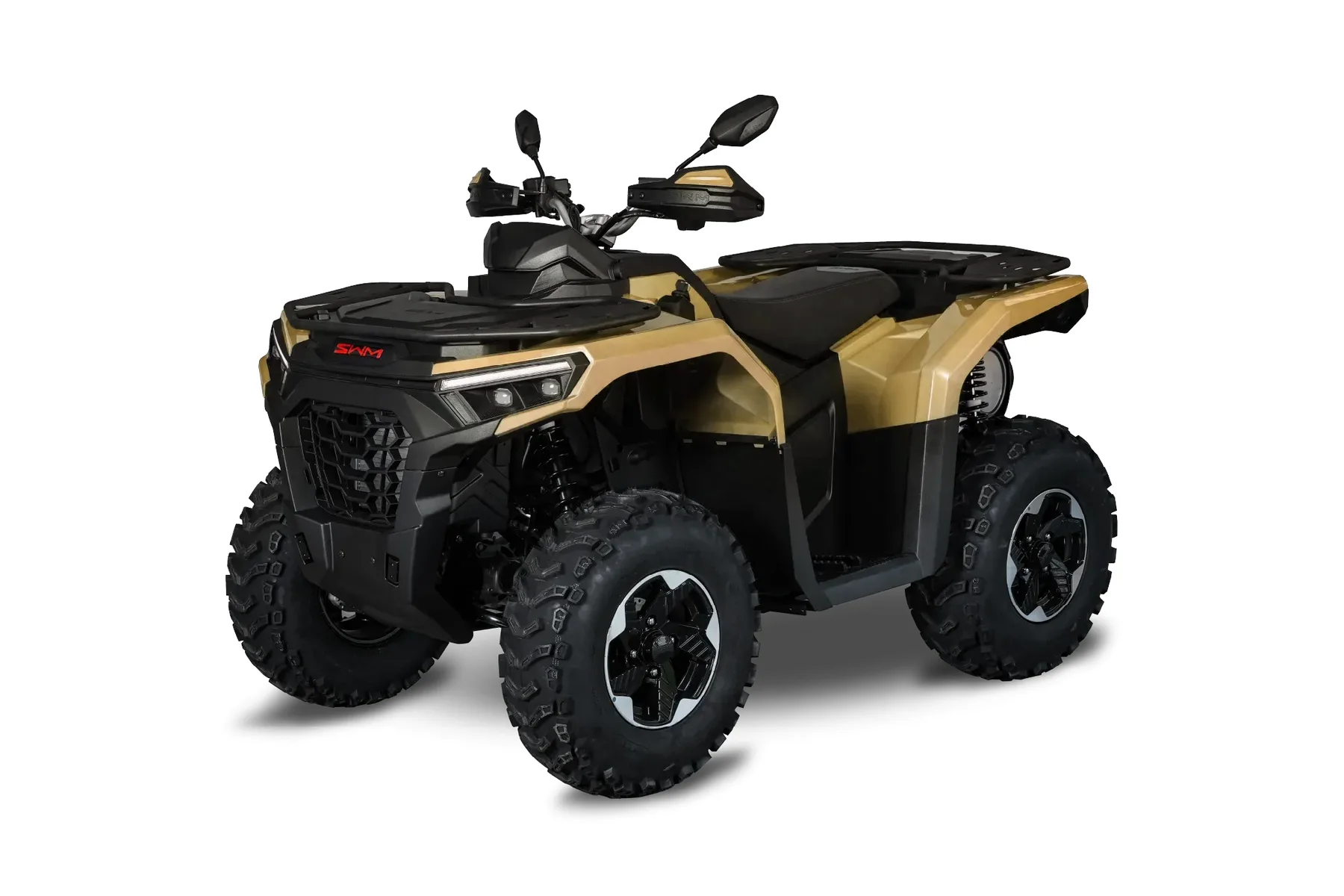

Trailhunter 1000 ULT

TPMWS
28 in. K-rated tires, 14 in. aluminum wheels
4500 (2036 kg) winch
Top-grade front and rear bumpers
Front and rear gas shock absorbers
7 in. multifunction display
Beadlock wheels
Color matching for the parts below:
Top-grade front and rear bumpers
Double A-arms
Beadlock
Spring of shock absorber

Also available as a 2-seat Touring version.

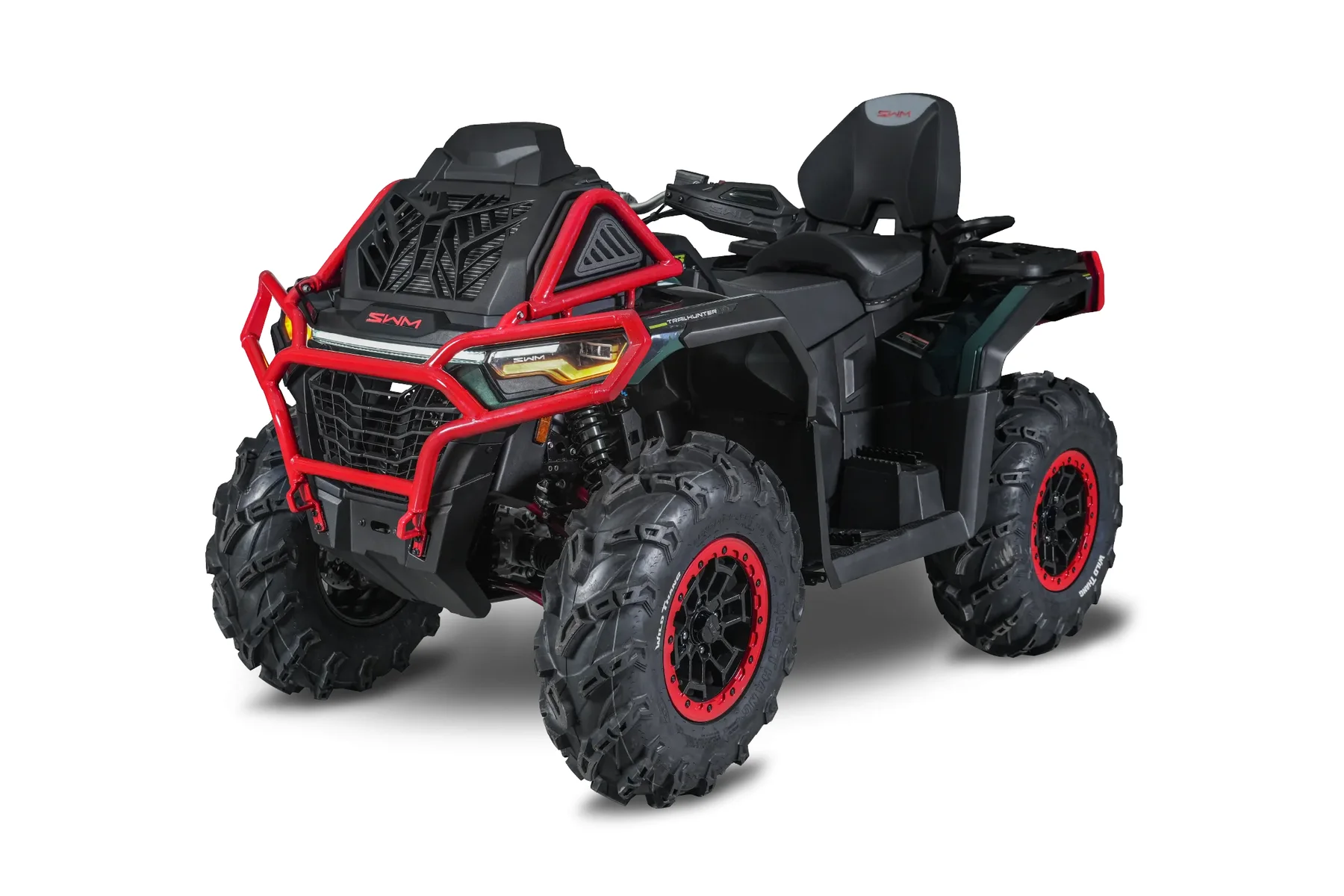

Trailhunter 1000 Mud

30 in. K-rated tires, 14 in. aluminum wheels
Mud kit
Mud footrest
Color matching for the parts below:
Top-grade front and rear bumpers
Double A-arms
Beadlock
Spring of shock absorber

Also available as a 2-seat Touring version.

Specifications

Trailhunter 1000

Engine

Engine type	DOHC, V-twin, liquid-cooled
Displacement	999 cc
Power (hp)	100 hp
Max. torque	93 Nm
Fuel system	BOSCH EFI
Transmission	CVTech CVT L / H / N / R / P
Drivetrain	Selectable 2WD/4WD with front differential lock

Chassis & brakes

Front suspension	Double A-arm, 274 mm travel
Rear suspension	Double A-arm, 305 mm travel
Shock absorbers	Oil shock absorbers
Front brake	Dual 236 mm discs, hydraulic twin-piston calipers
Rear brake	Dual 236 mm discs, hydraulic twin-piston calipers
Front tyre	26 × 9 × 14"
Rear tyre	26 × 11 × 14"
Wheels	14" steel

Dimensions & weight

Length	2275 mm
Width	1270 mm
Height	1477 mm
Wheelbase	1350 mm
Seat height	962 mm
Min. ground clearance	301 mm
Fuel tank	23 L
Weight	450 kg
Payload capacity	300 kg
Towing capacity	820 kg
Rack capacity (front / rear)	50 kg / 110 kg

Equipment

Lighting	LED headlights and taillights
Instruments	7 in. TFT display
Warranty	2-year limited factory warranty

Specifications are indicative and may change without notice. Equipment and colours may vary by market. The specifications are those of the base version; tyres, suspension and equipment can differ between versions.
