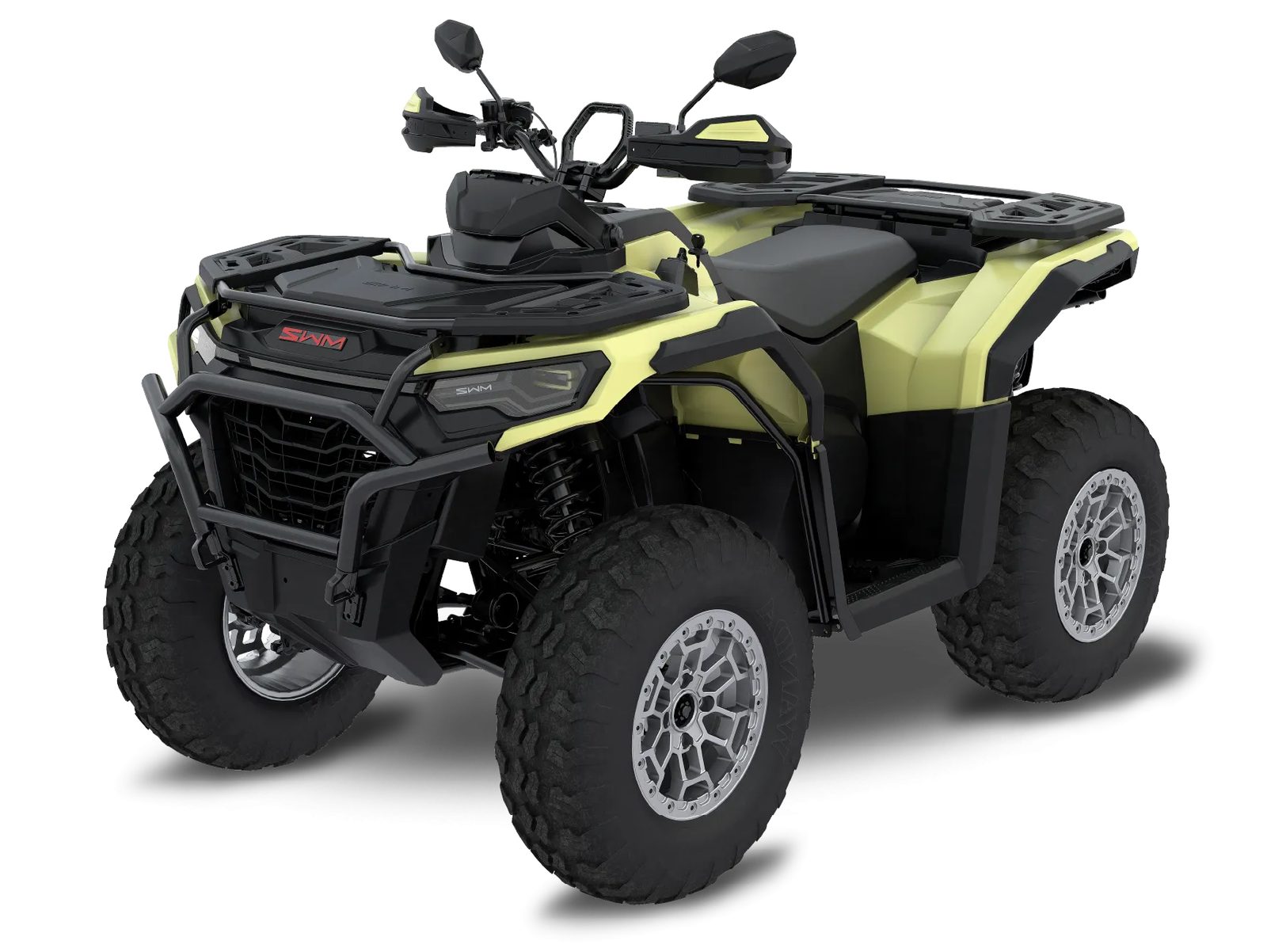

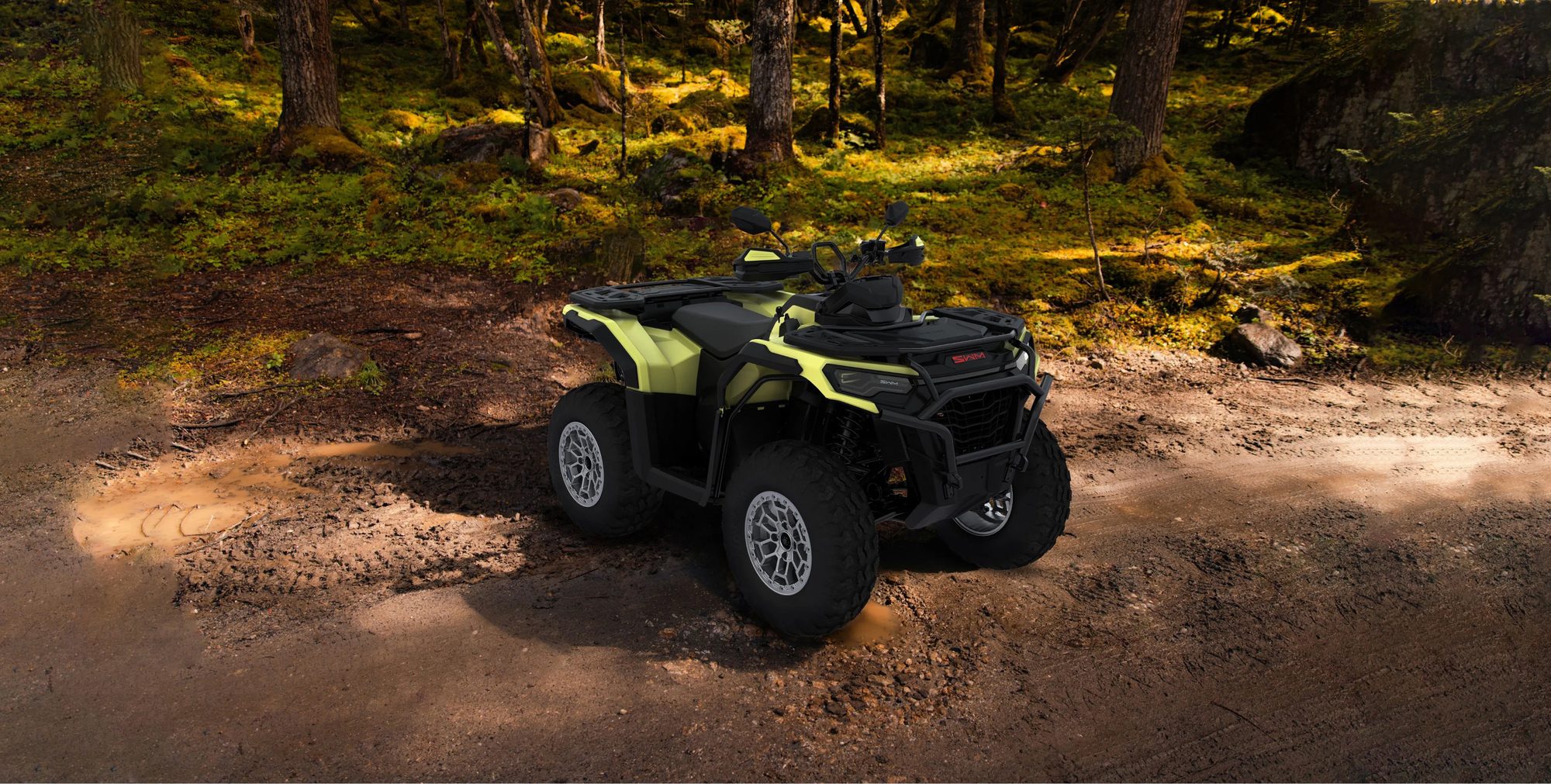

Overview

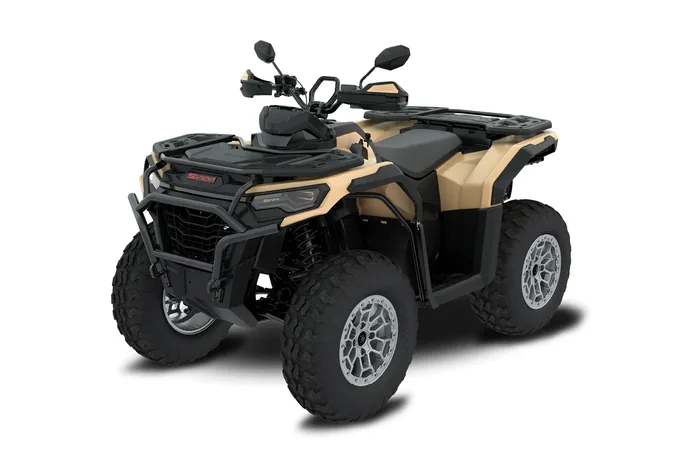

The Trailhunter 850 is a 4x4 ATV with a V-twin, liquid-cooled engine, 999 cc, BOSCH EFI, 82 hp and 90 N·m of torque. Selectable 2WD/4WD with front differential lock, 301 mm of ground clearance and a towing capacity of 830 kg.

Built to endure

A high-yield-strength alloy steel frame for demanding conditions.

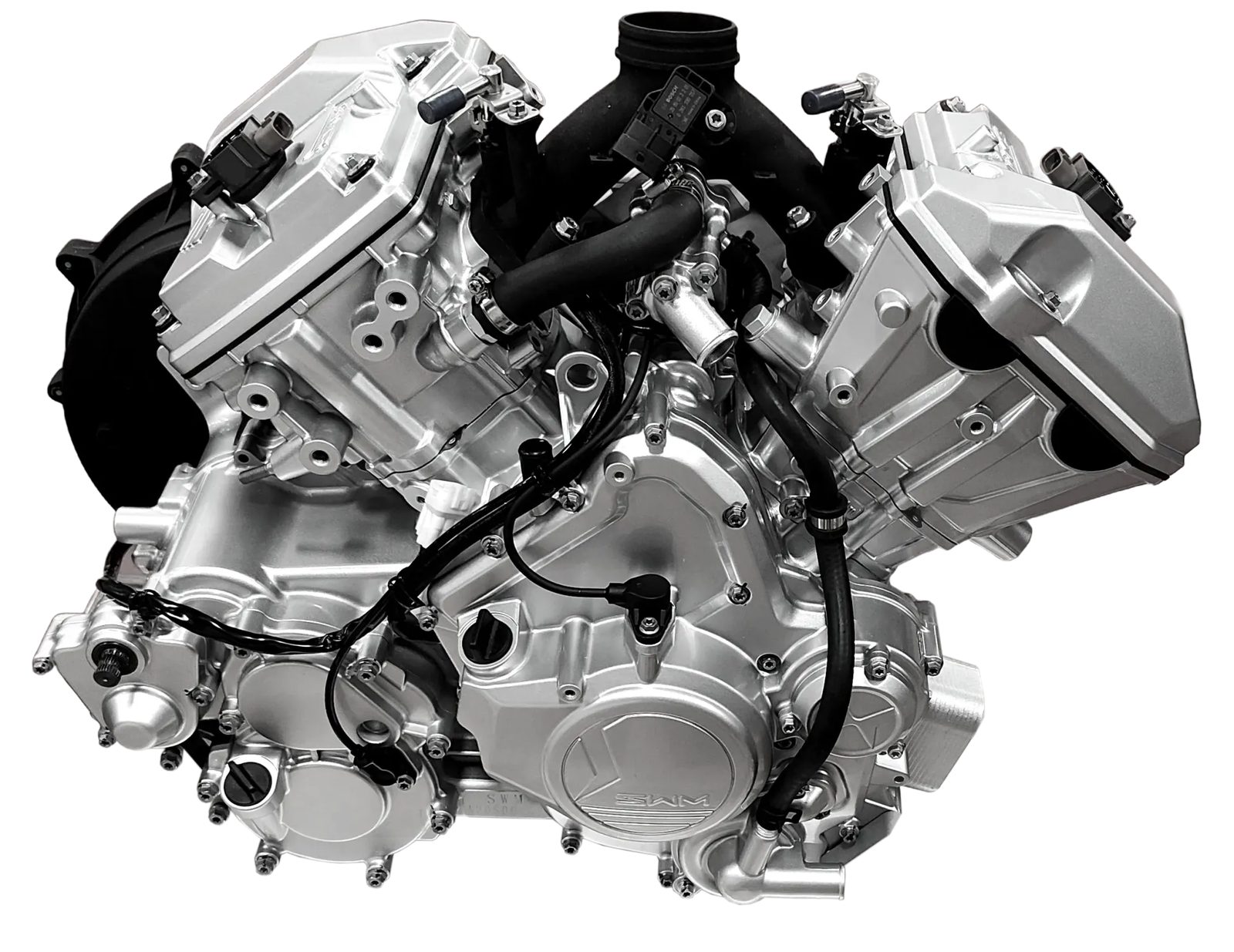

Engine

999 cc V-twin, liquid-cooled engine with BOSCH EFI — 82 hp and 90 N·m of torque.

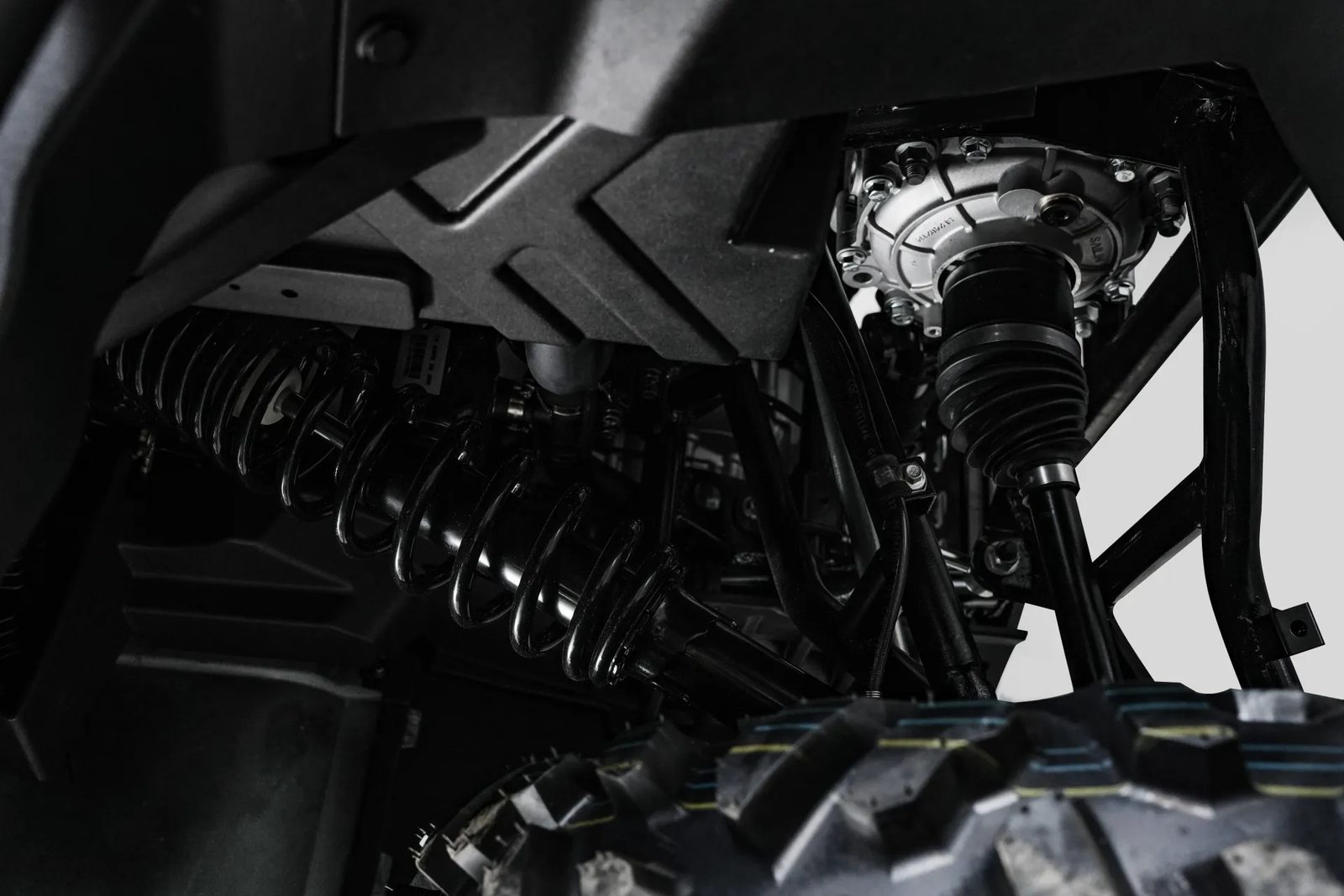

Suspension

Double A-arm suspension with 255 mm of front and 265 mm of rear travel.

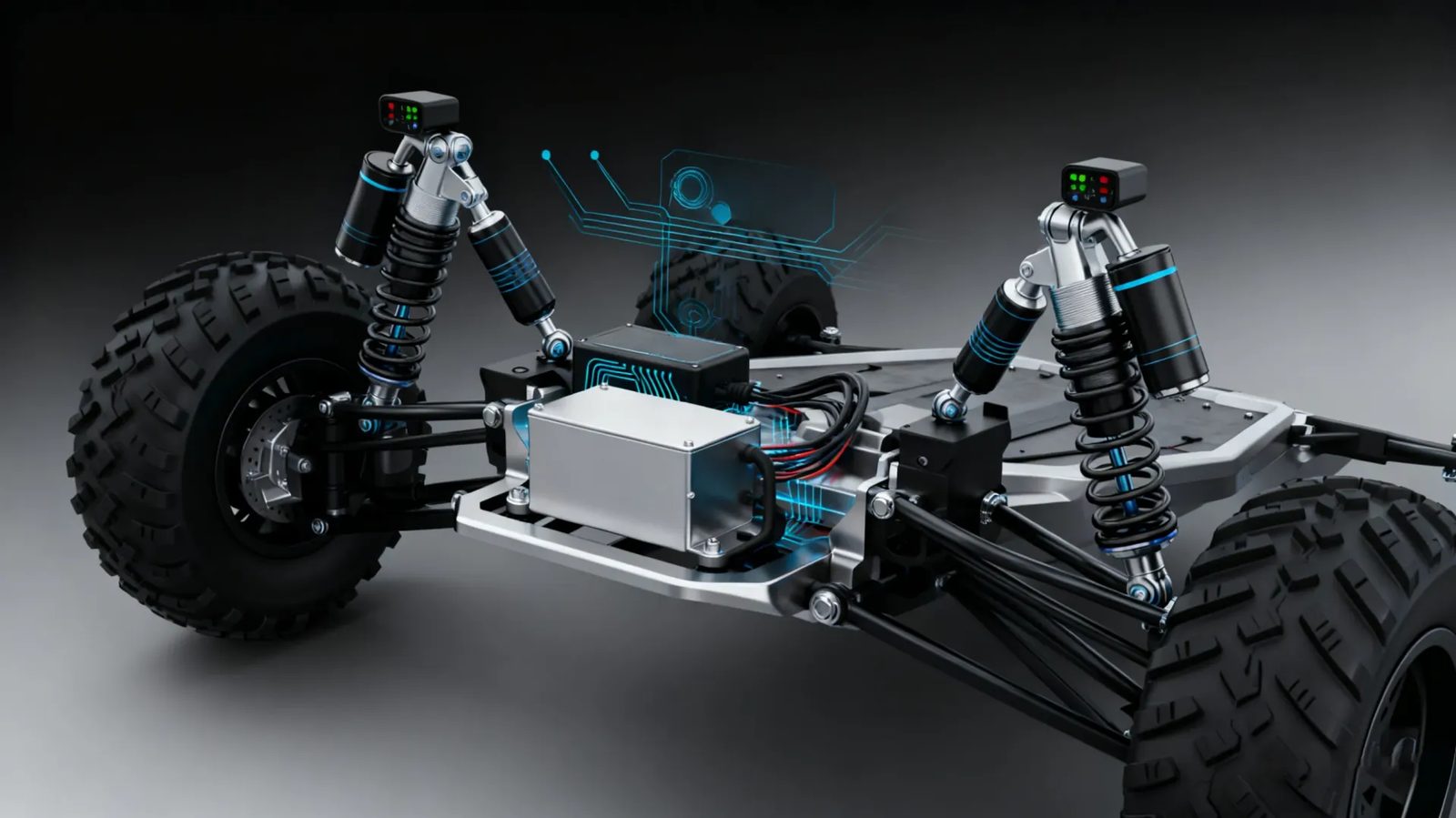

Smart electronic suspension

Smart E-Suspension adjusts the damping to improve pitch control on rough terrain, and adjusts the left and right dampers independently for roll control when cornering.

Storage

Integrated front and rear sunken storage compartments for your gear and essentials.

Smart options

Tri-mode EPS, engine braking, intelligent throttle control, Eco / Standard / Sport work modes, active descent control, anti-theft and electric gear shift.

Versions & equipment

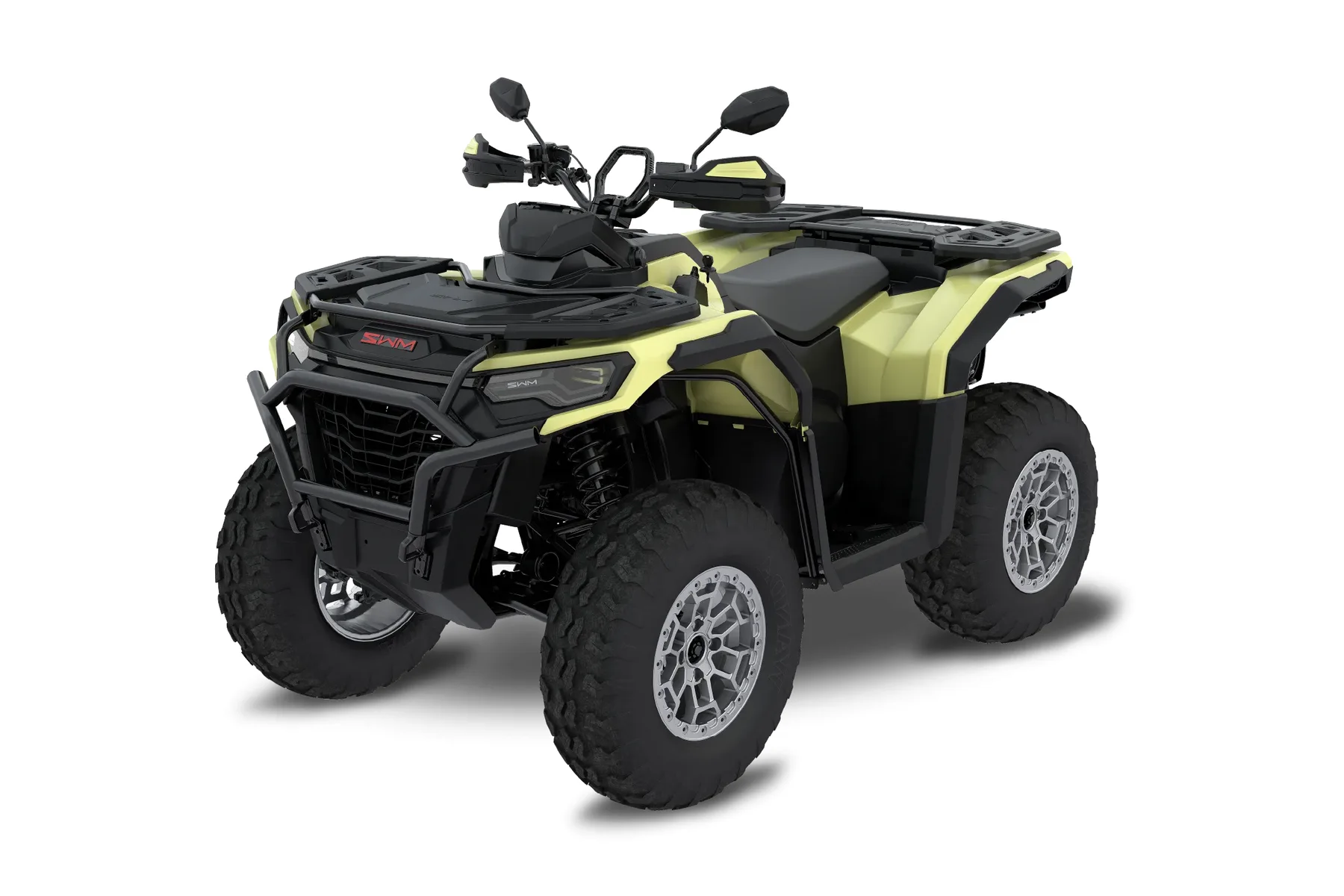

Trailhunter 850 EPS

Electronic throttle
Smart anti-theft key
EPS
27in. K-rated tires, 14 in. steel wheels

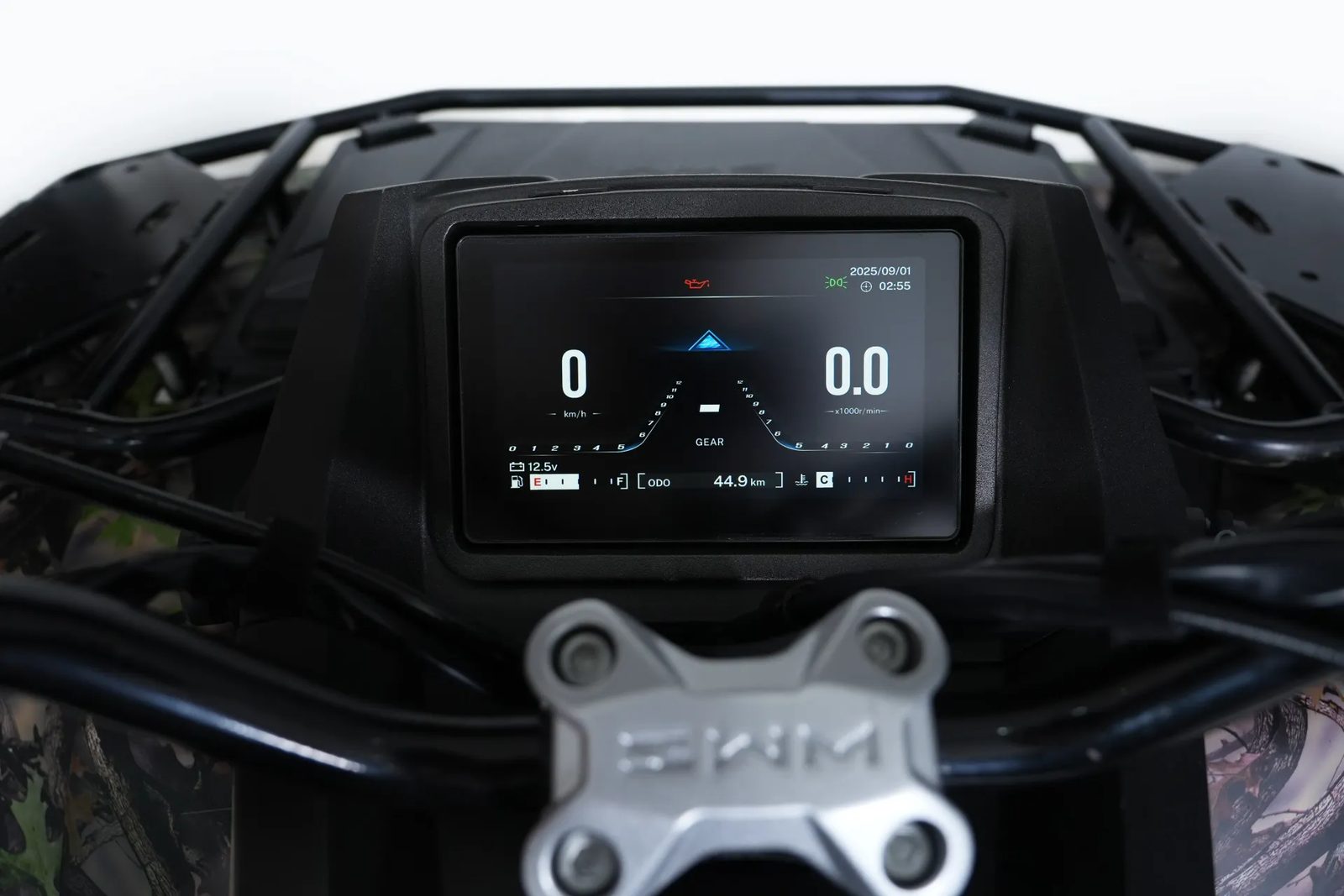

7 in. TFT display
Oil shock absorber
Base-grade front bumper
CVTech Clutch
BCM (Body control module) system
Intelligent In-Vehicle Infotainment System (IVI system)

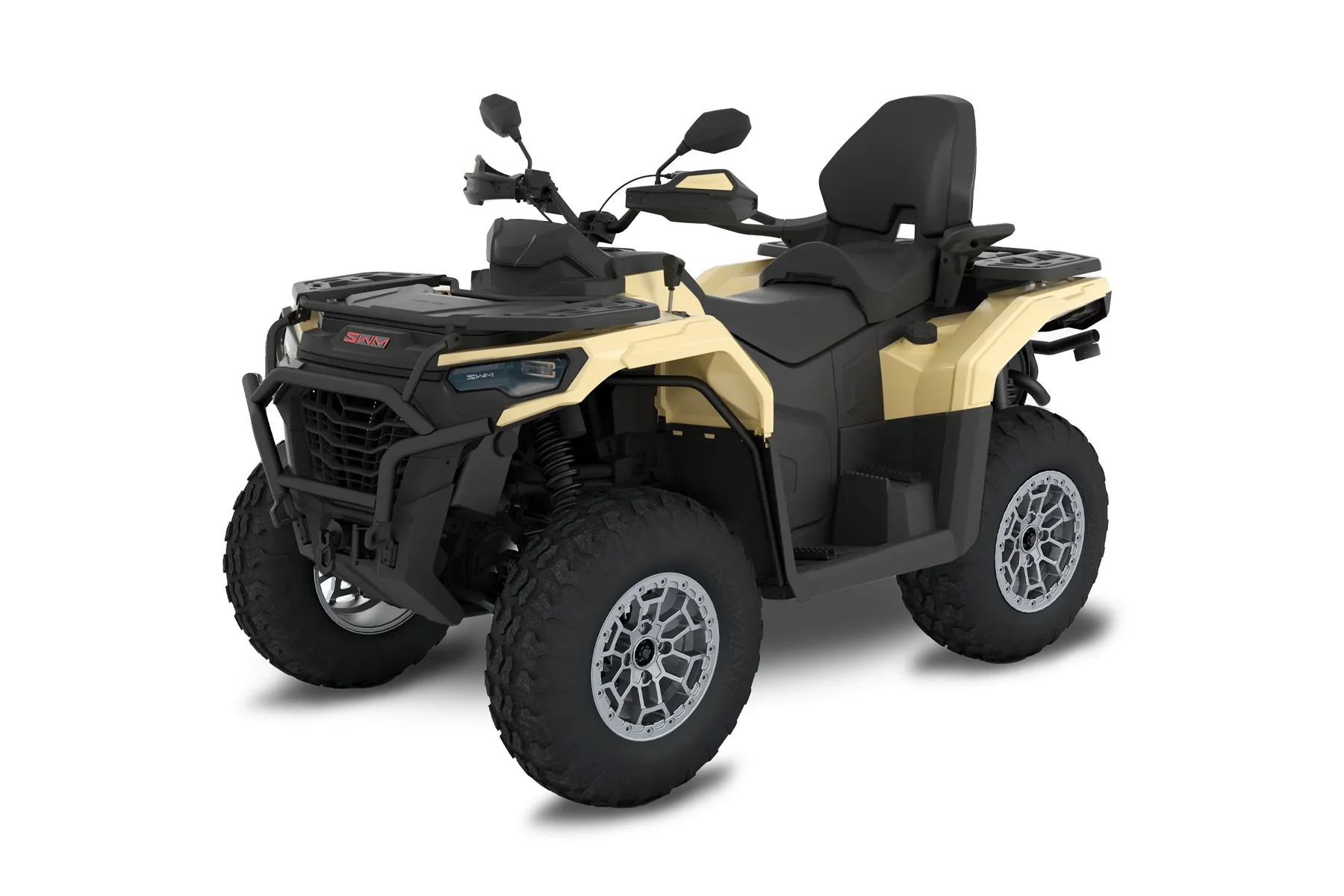

Also available as a 2-seat Touring version.

Trailhunter 850 ULT

Eco / Standard / Sport modes
27 in. K-rated tires, 14 in. aluminum wheels
Rear hitch ball
3500 (1583 kg) winch
Mid-grade front bumper
Front double A-arm with sway bar
Handguards
Fender guards
7 in. multifunction display
Front and Rear Center-Mounted Daytime Running Lights (DRLs)

Also available as a 2-seat Touring version.

Trailhunter 850 Mud

30 in. K-rated tires, 14 in. aluminum wheels
Top-grade front and rear bumpers
Beadlock wheels
Mud kit
Mud footrest
Color matching for the parts below:
Top-grade front and rear bumpers
Double A-arms
Beadlock
Spring of shock absorber
Mounting of water reservoir

Also available as a 2-seat Touring version.

Specifications

Trailhunter 850

Engine

Engine type	DOHC, V-twin, liquid-cooled
Displacement	999 cc
Power (hp)	82 hp
Max. torque	90 Nm
Fuel system	BOSCH EFI
Transmission	CVTech CVT L / H / N / R / P
Drivetrain	Selectable 2WD/4WD with front differential lock

Chassis & brakes

Front suspension	Double A-arm, 255 mm travel
Rear suspension	Double A-arm, 265 mm travel
Shock absorbers	Twin oil shock absorbers
Front brake	Dual 236 mm discs, hydraulic twin-piston calipers
Rear brake	Dual 236 mm discs, hydraulic twin-piston calipers
Front tyre	27 × 9 × 14"
Rear tyre	27 × 11 × 14"
Wheels	14" steel

Dimensions & weight

Length	2275 mm
Width	1270 mm
Height	1477 mm
Wheelbase	1350 mm
Seat height	962 mm
Min. ground clearance	301 mm
Fuel tank	23 L
Weight	420 kg
Towing capacity	830 kg
Rack capacity (front / rear)	50 kg / 100 kg

Equipment

Lighting	LED headlights and taillights
Instruments	7 in. TFT display
Warranty	2-year limited factory warranty

Specifications are indicative and may change without notice. Equipment and colours may vary by market. The specifications are those of the base version; tyres, suspension and equipment can differ between versions.
