Overview

The Trailhunter 720 is a 4x4 ATV with a single-cylinder, liquid-cooled engine, 650 cc, BOSCH EFI, 55 hp and 58 N·m of torque. Selectable 2WD/4WD with front differential lock, 280 mm of ground clearance and a towing capacity of 810 kg.

Built to endure

A high-yield-strength alloy steel frame for demanding conditions.

Engine

650 cc single-cylinder, liquid-cooled engine with BOSCH EFI — 55 hp and 58 N·m of torque.

Suspension

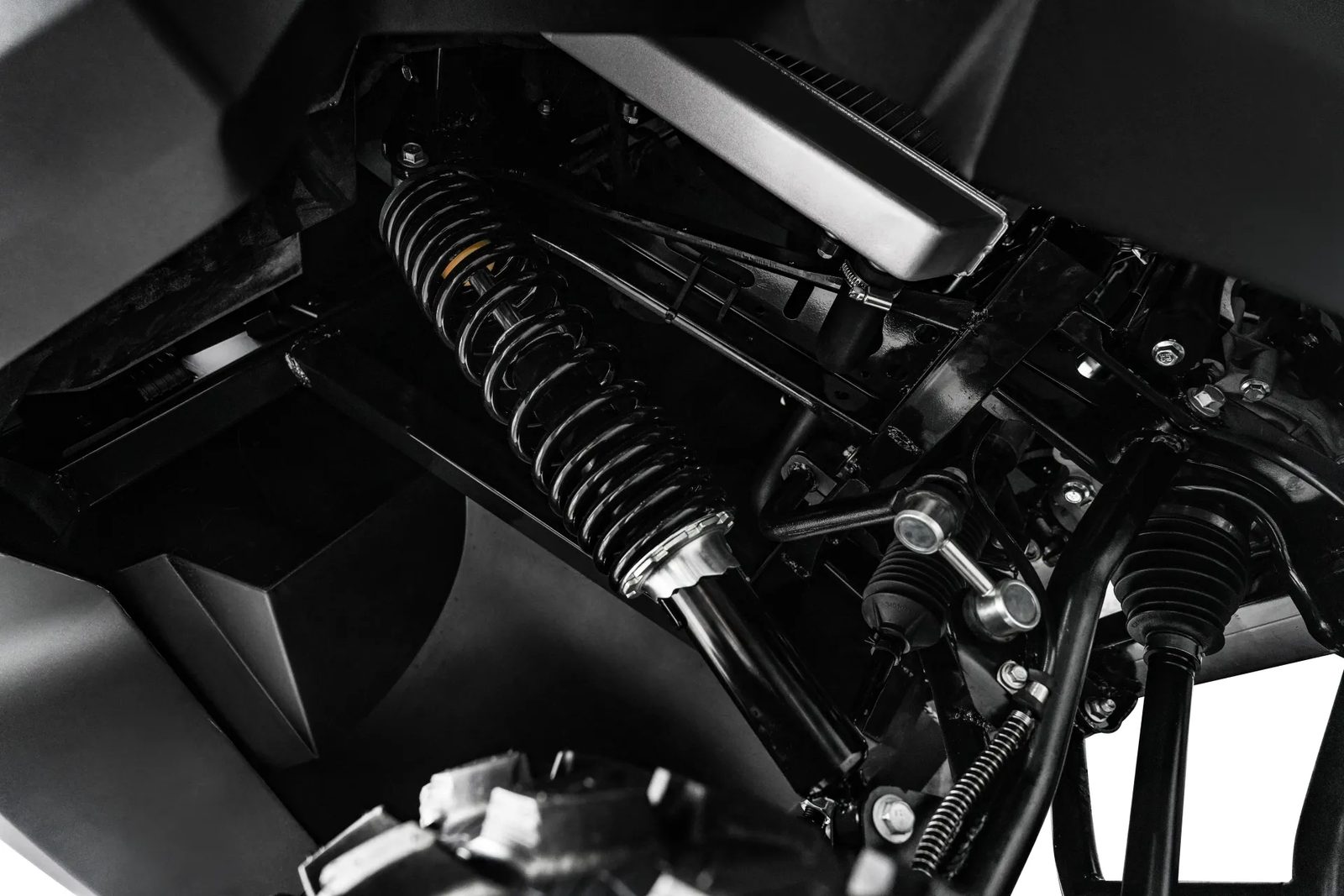

Double A-arm suspension with 240 mm of front and 250 mm of rear travel.

Storage

Integrated front and rear sunken storage compartments for your gear and essentials.

Smart options

Tri-mode EPS, engine braking, intelligent throttle control, Eco / Standard / Sport work modes, active descent control, anti-theft and electric gear shift.

Versions & equipment

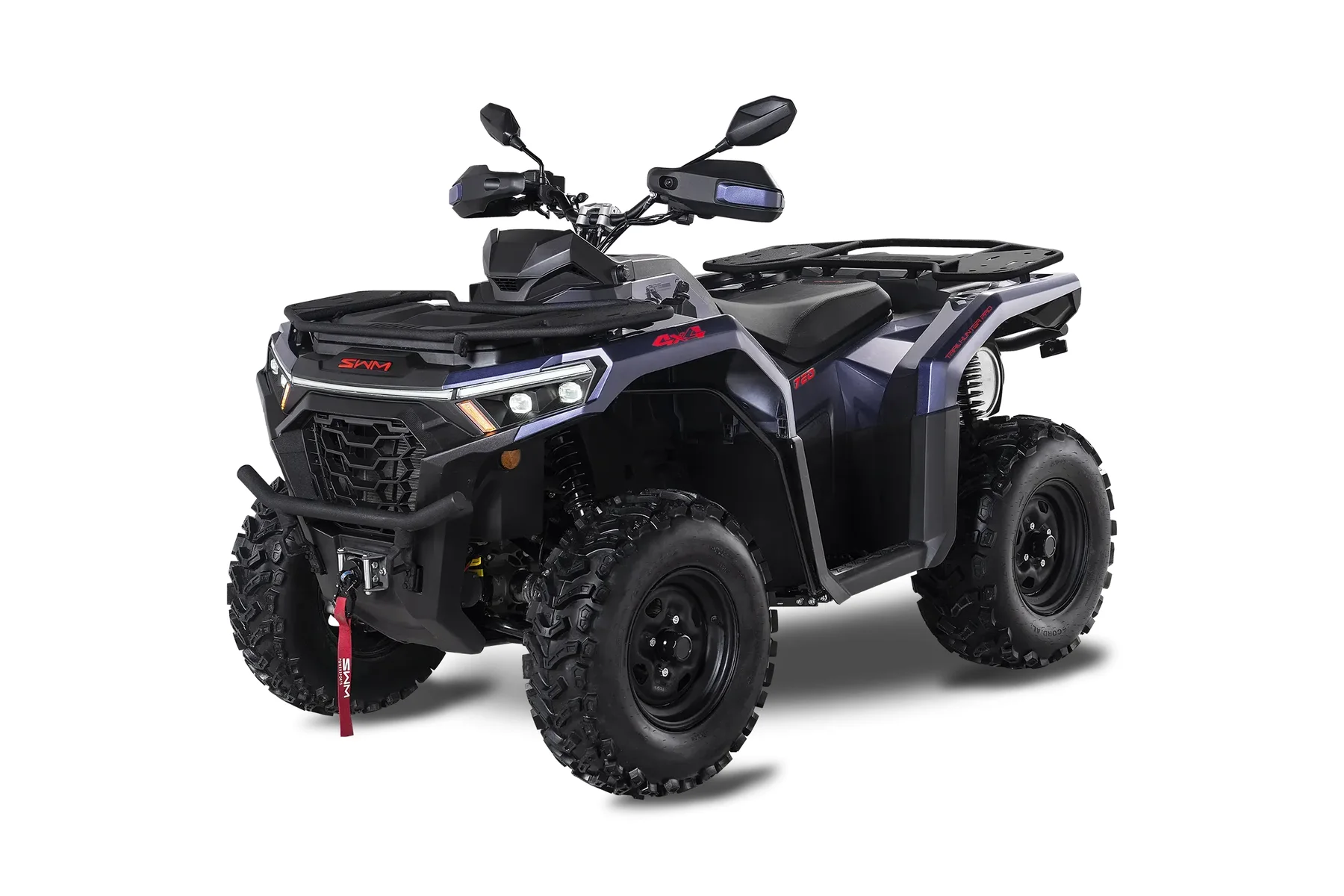

Trailhunter 720 EPS

Electronic throttle
EPS
25 in. tires, 12 in. steel wheels

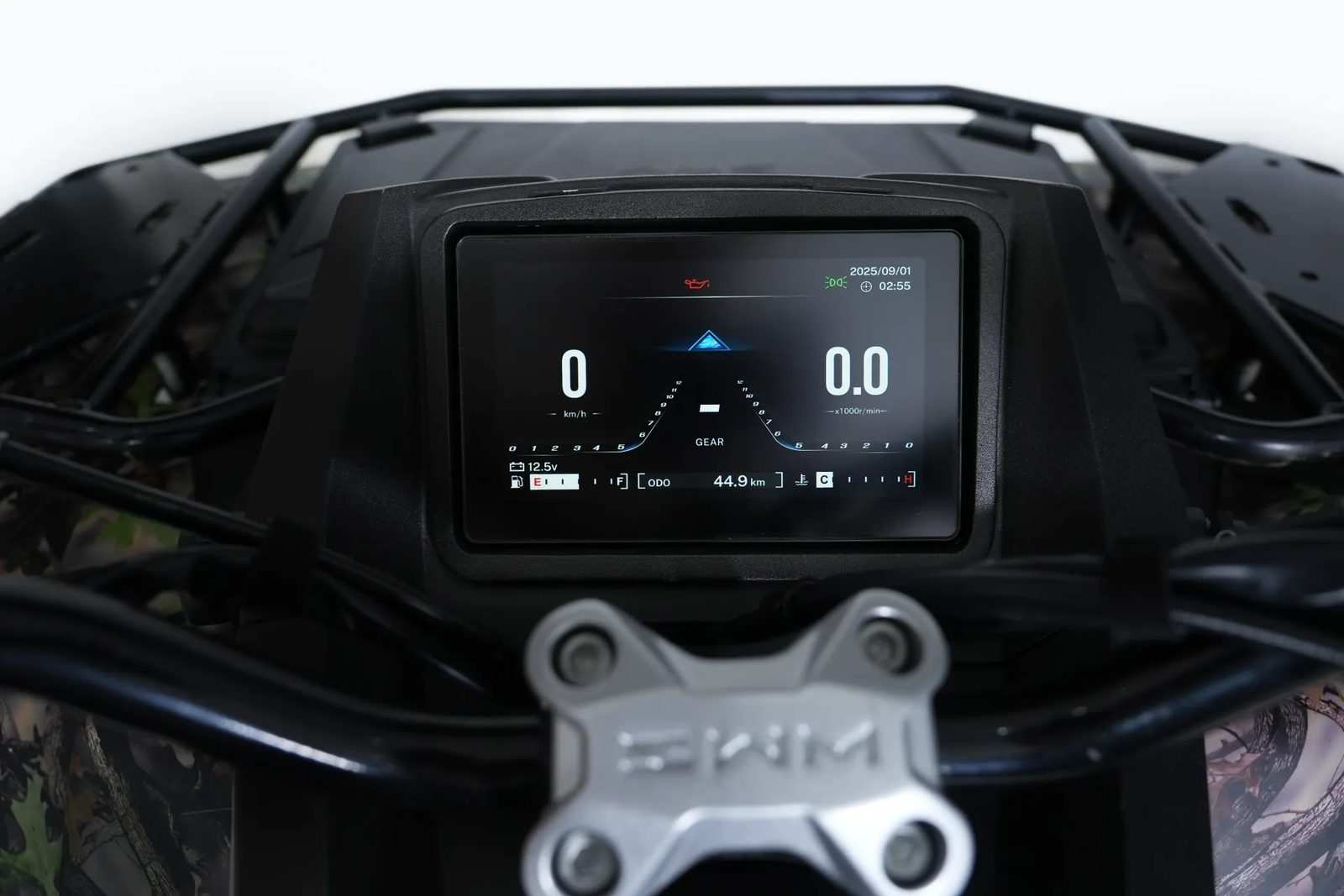

5 in. digital display
Oil shock absorber
CVTech Clutch
Base-grade front bumper
BCM (Body control module) system
Intelligent In-Vehicle Infotainment System (IVI system)

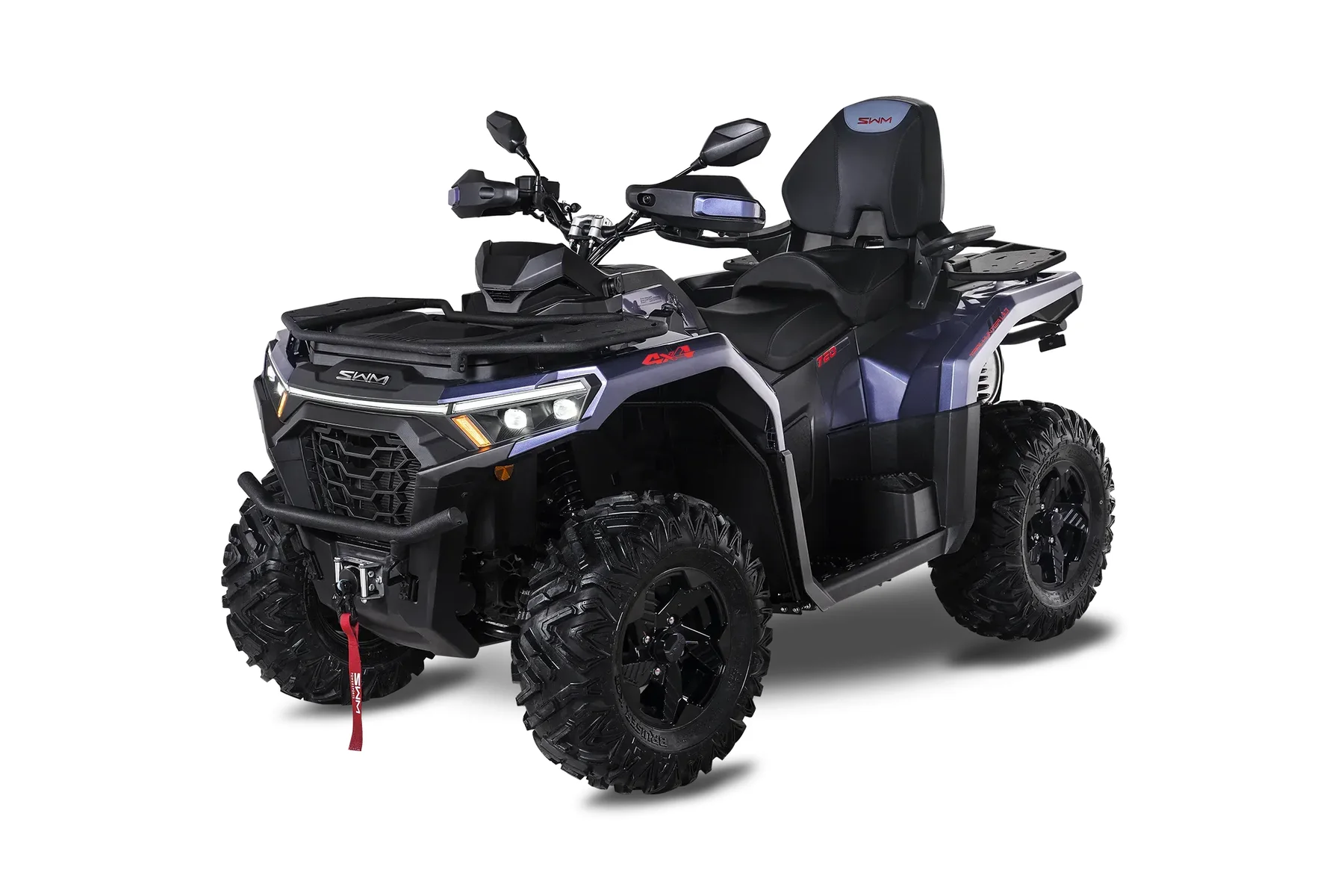

Also available as a 2-seat Touring version.

Trailhunter 720 Pro

Eco / Standard / Sport modes
26 in. tires, 14 in. aluminum wheels
Rear hitch ball
2500 (1131 kg) winch
Mid-grade front bumper
7 in. TFT display
Handguards
Fender guards
Front and Rear Center-Mounted Daytime Running Lights (DRLs)

Also available as a 2-seat Touring version.

Trailhunter 720 ULT

Smart anti-theft key
27 in. tires, 14 in. aluminum wheels
3500 (1583 kg) winch
Top-grade front and rear bumpers
Front and rear gas shock absorbers
7 in. multifunction display
Front dropdown storage

Also available as a 2-seat Touring version.

Trailhunter 720 Mud

28 in. mud tires, 14 in. aluminum wheels
Beadlock wheels
Mud kit
Mud footrest
Color matching for the parts below:
Top-grade front and rear bumpers
Double A-arms
Beadlock
Spring of shock absorber
Mounting of water reservoir

Also available as a 2-seat Touring version.

Specifications

Trailhunter 720

Engine

Engine type	DOHC, single-cylinder, liquid-cooled
Displacement	650 cc
Power (hp)	55 hp
Max. torque	58 Nm
Fuel system	BOSCH EFI
Transmission	CVT L / H / N / R / P
Drivetrain	Selectable 2WD/4WD with front differential lock

Chassis & brakes

Front suspension	Double A-arm, 240 mm travel
Rear suspension	Double A-arm, 250 mm travel
Shock absorbers	Twin oil shock absorbers
Front brake	Dual 200 mm discs, hydraulic twin-piston calipers
Rear brake	Dual 200 mm discs, hydraulic twin-piston calipers
Front tyre	25 × 8 × 12"
Rear tyre	25 × 10 × 12"
Wheels	12" steel

Dimensions & weight

Length	2250 mm
Width	1200 mm
Height	1450 mm
Wheelbase	1500 mm
Seat height	950 mm
Min. ground clearance	280 mm
Fuel tank	23 L
Weight	400 kg
Towing capacity	810 kg
Rack capacity (front / rear)	45 kg / 90 kg

Equipment

Lighting	LED headlights and taillights
Instruments	5 in. digital display
Warranty	2-year limited factory warranty

Specifications are indicative and may change without notice. Equipment and colours may vary by market. The specifications are those of the base version; tyres, suspension and equipment can differ between versions.
