Overview

The Trailhunter 580 is a 4x4 ATV with a single-cylinder, liquid-cooled engine, 650 cc, BOSCH EFI, 49 hp and 51 N·m of torque. Selectable 2WD/4WD with front differential lock, 280 mm of ground clearance and a towing capacity of 810 kg.

Built to endure

A high-yield-strength alloy steel frame for demanding conditions.

Engine

650 cc single-cylinder, liquid-cooled engine with BOSCH EFI — 49 hp and 51 N·m of torque.

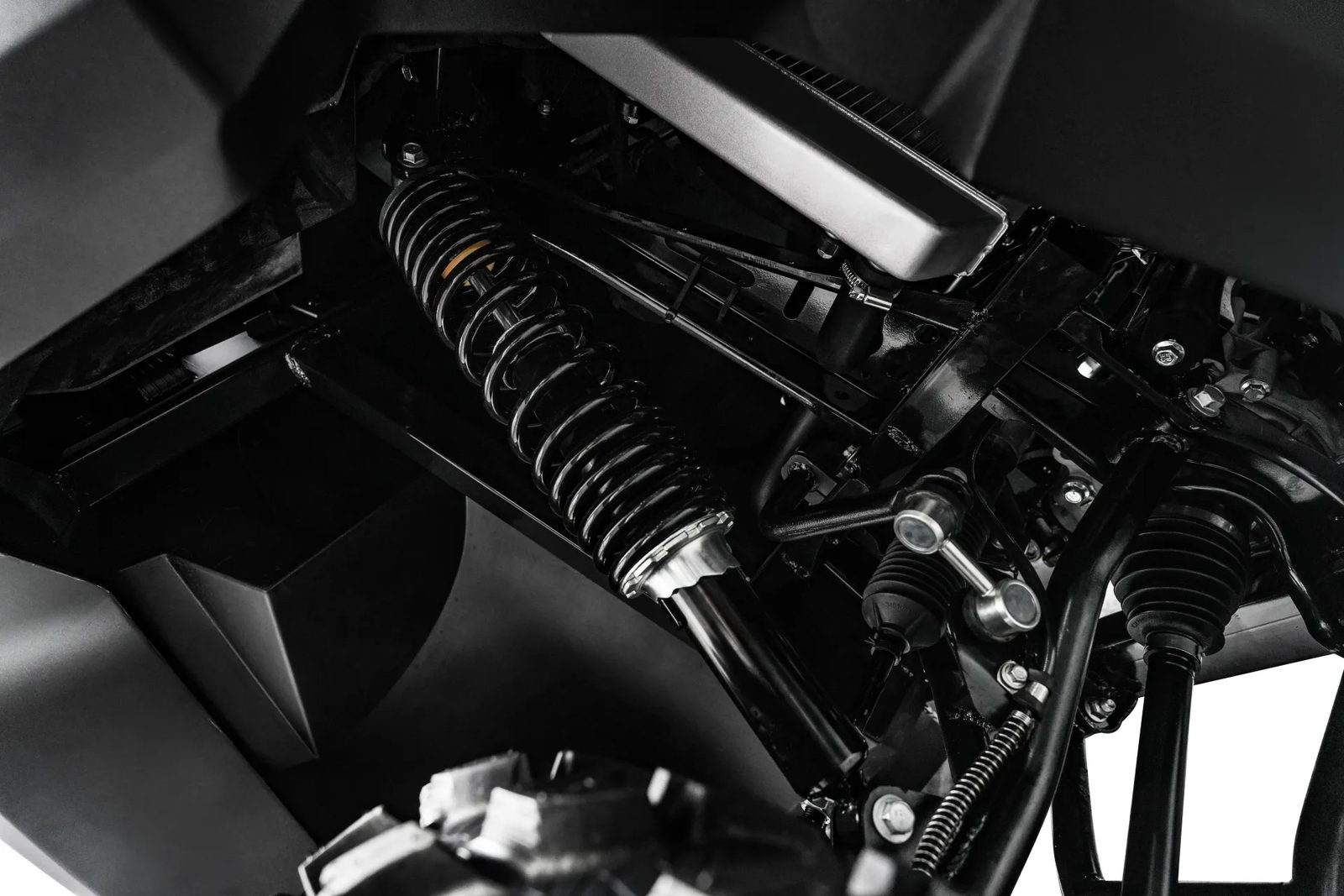

Suspension

Double A-arm suspension with 240 mm of front and 250 mm of rear travel.

Storage

Integrated front and rear sunken storage compartments for your gear and essentials.

Versions & equipment

Trailhunter 580 Base

Mechanical throttle
25 in. tires, 12 in. steel wheels
5 in. digital display/ power outlet
Oil shock absorber
Changxing Clutch
Base-grade front bumper
BCM (Body control module) system
Intelligent In-Vehicle Infotainment System

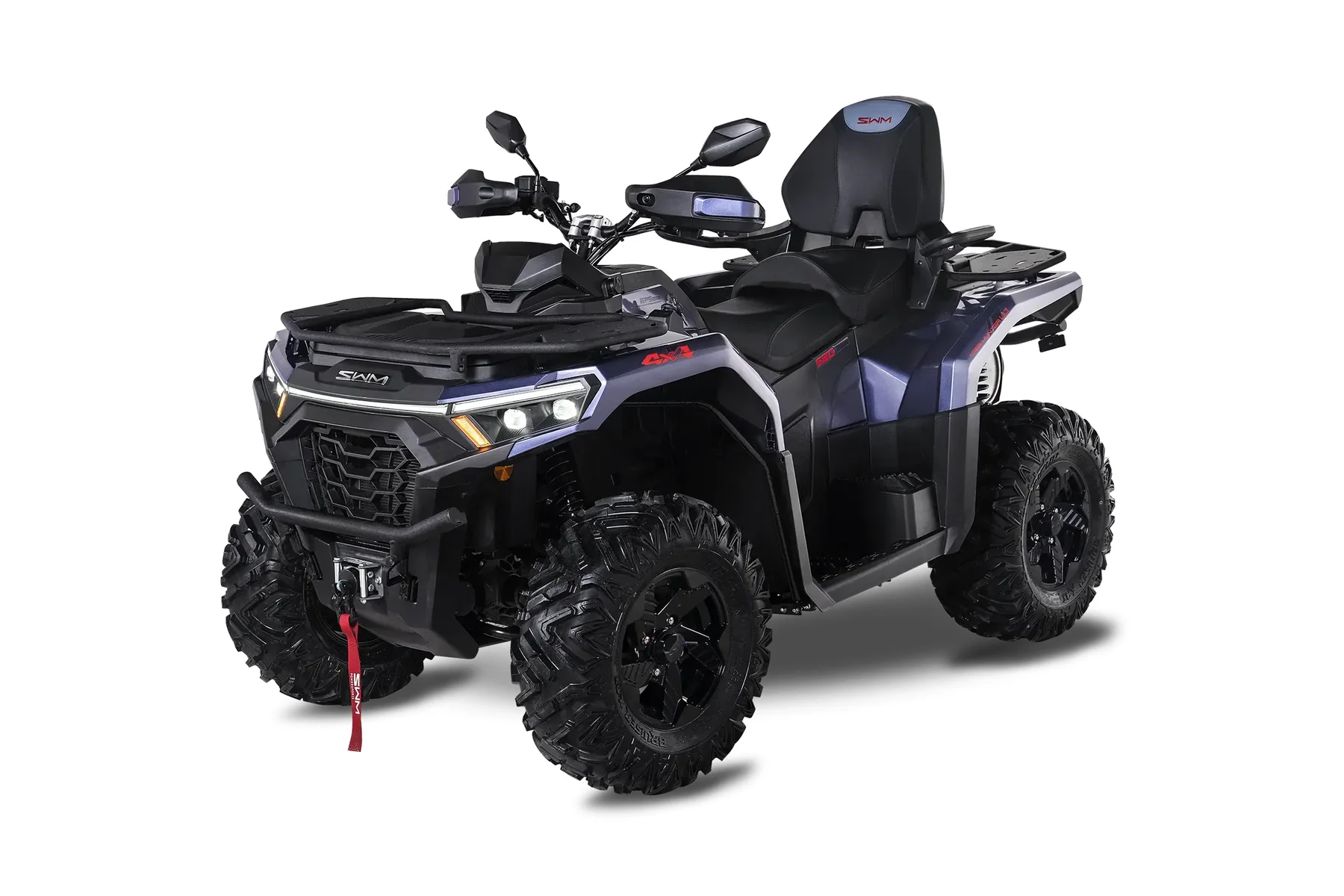

Also available as a 2-seat Touring version.

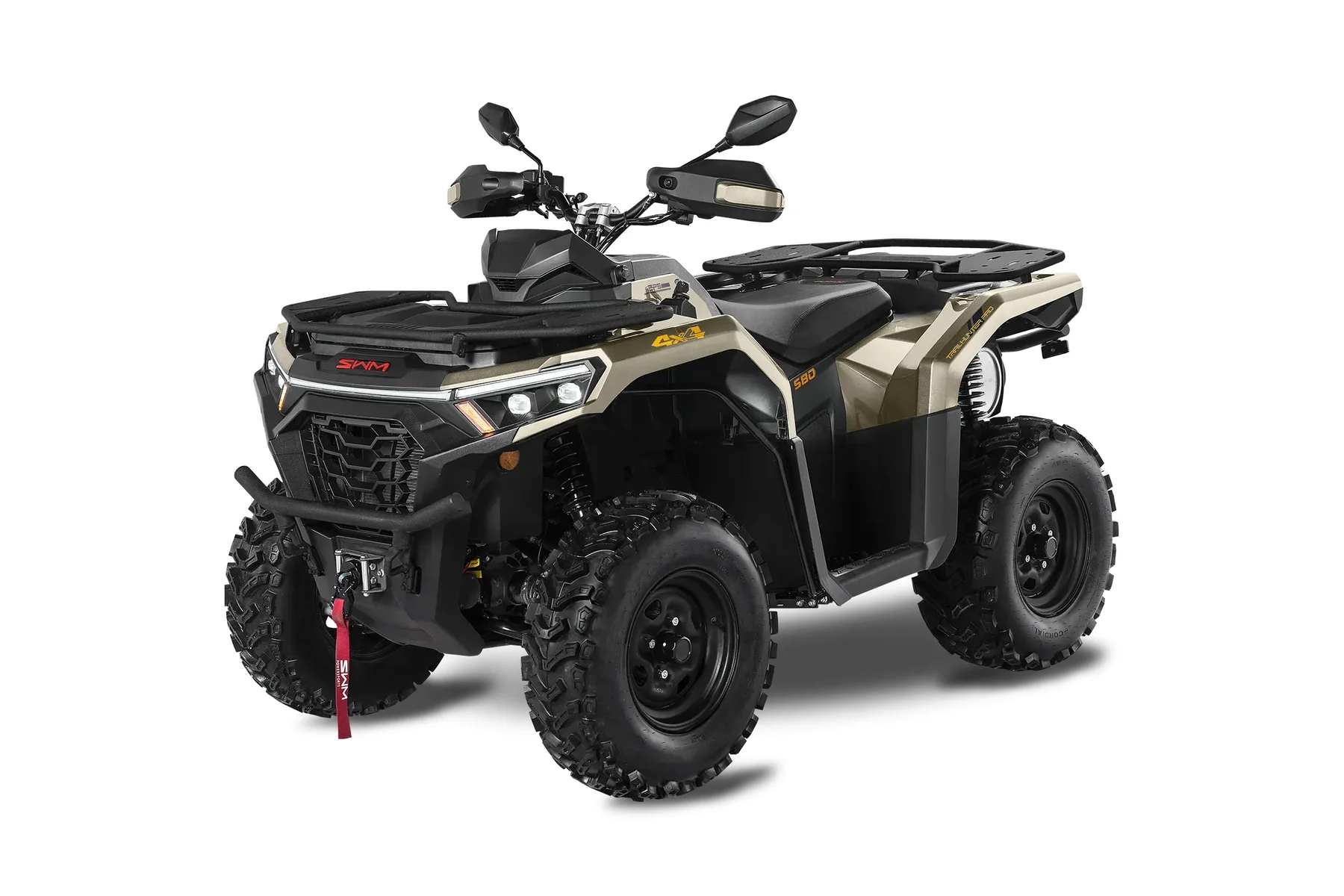

Trailhunter 580 Pro

Triple-mode Electronic Power Steering (EPS)
2500 lbs. (1131 kg) winch
Handguards
Mid-grade front bumper
Rear hitch ball

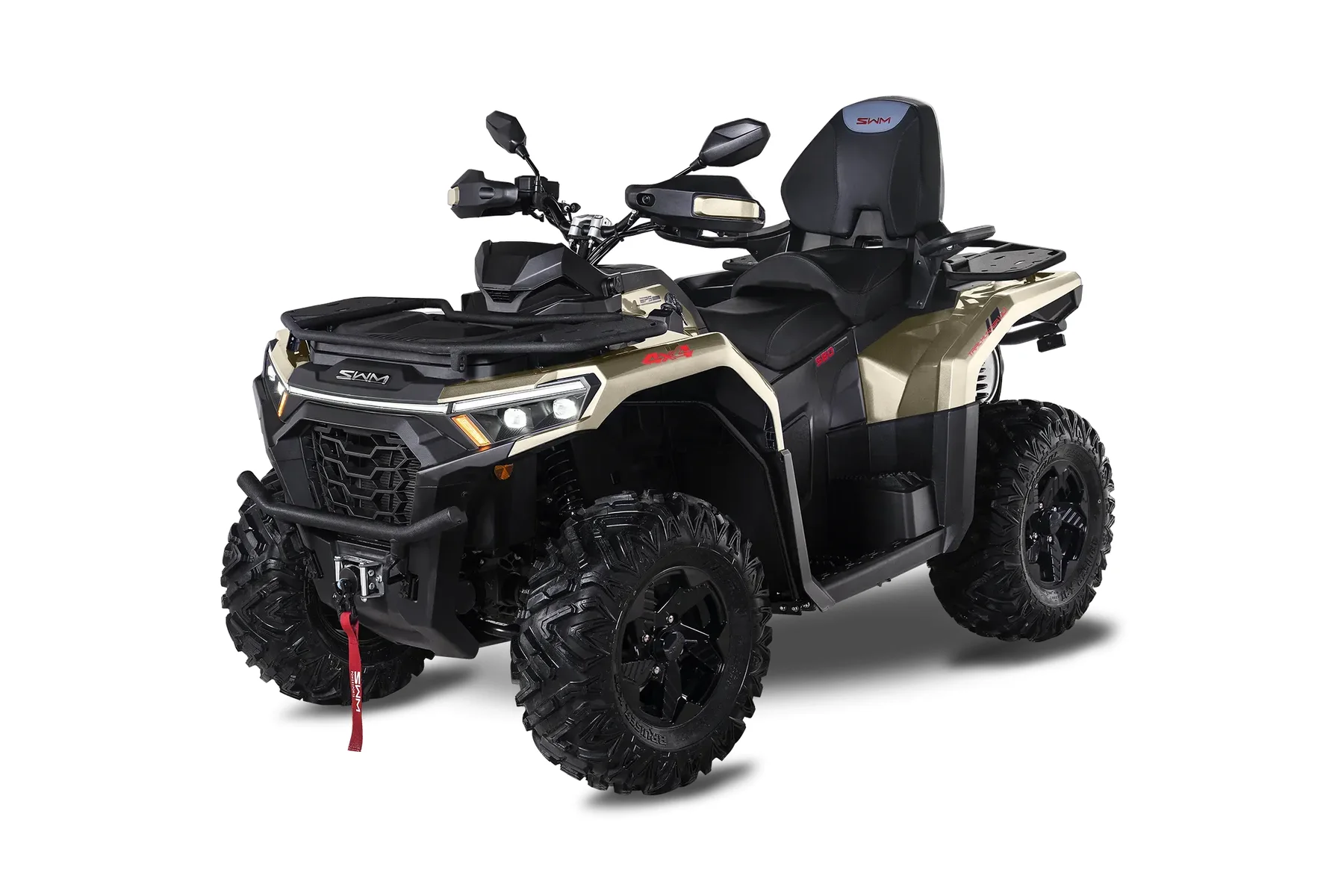

Also available as a 2-seat Touring version.

Specifications

Trailhunter 580

Engine

Engine type	DOHC, single-cylinder, liquid-cooled
Displacement	650 cc
Power (hp)	49 hp
Max. torque	51 Nm
Fuel system	BOSCH EFI
Transmission	Changxing CVT L / H / N / R / P
Drivetrain	Selectable 2WD/4WD with front differential lock

Chassis & brakes

Front suspension	Double A-arm, 240 mm travel
Rear suspension	Double A-arm, 250 mm travel
Shock absorbers	Twin oil shock absorbers
Front brake	Dual 200 mm discs, hydraulic twin-piston calipers
Rear brake	Dual 200 mm discs, hydraulic twin-piston calipers
Front tyre	25 × 8 × 12"
Rear tyre	25 × 10 × 12"
Wheels	12" steel

Dimensions & weight

Length	2250 mm
Width	1200 mm
Height	1450 mm
Wheelbase	1320 mm
Seat height	950 mm
Min. ground clearance	280 mm
Fuel tank	23 L
Weight	400 kg
Towing capacity	810 kg
Rack capacity (front / rear)	45 kg / 90 kg

Equipment

Lighting	LED headlights and taillights
Instruments	5 in. digital display
Warranty	2-year limited factory warranty

Specifications are indicative and may change without notice. Equipment and colours may vary by market. The specifications are those of the base version; tyres, suspension and equipment can differ between versions.
